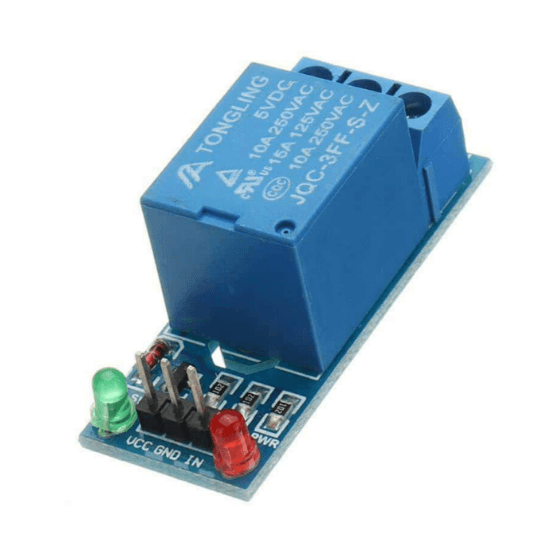

5V Single Channel RELAY Module

This is a 5V single Channel Relay Board Module For Arduino PIC AVR DSP ARM. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and so on can control it. The module is triggered with, a high trigger current of less than 5mA, and part of the 51 single-chip IO port output capability is weak, pulls or increases the drive capability of the circuit. It can be used for microcontroller development board modules or home appliance control. The 5V Single Channel Relay Module is a fundamental component in electronics and automation projects, offering a versatile solution for controlling high-power devices or circuits with low-voltage signals. This compact module serves as an interface between microcontrollers, such as Arduino or Raspberry Pi, and various electrical appliances, enabling seamless integration into a wide range of applications, from home automation and robotics to industrial control systems. At its core, the 5V Single Channel Relay Module consists of a relay, which is an electromechanical switch, and supporting circuitry housed on a small printed circuit board (PCB). The module typically operates with a 5-volt power supply, making it compatible with common microcontroller platforms. Its single-channel design means it controls a single electrical circuit or device, making it suitable for applications requiring simple on/off control. The primary function of the relay module is to provide electrical isolation between the low-voltage control signal from the microcontroller and the high-voltage load it switches. This isolation ensures the safety of sensitive electronic components and prevents potential damage to the microcontroller. Additionally, relays offer galvanic isolation, meaning there is no direct electrical connection between the control and load circuits, further enhancing safety and reliability. The relay module is characterized by its ability to handle relatively high currents and voltages, making it suitable for controlling a wide range of devices, including lights, motors, solenoids, heaters, and more. This versatility makes it a popular choice for automating household appliances, controlling lighting systems, and implementing safety features in industrial machinery. One of the key advantages of the 5V Single Channel Relay Module is its ease of use and compatibility with popular microcontroller platforms. With simple connections to the microcontroller’s digital output pins and power supply, users can quickly integrate the relay module into their projects without the need for complex wiring or additional components. This plug-and-play functionality makes it accessible to hobbyists, students, and professionals alike. Moreover, the relay module offers reliable switching performance, with minimal signal latency and negligible contact resistance. This ensures rapid response times and robust operation, crucial for applications requiring precise timing or frequent switching cycles. Another noteworthy feature of the relay module is its versatility in terms of control logic. Depending on the application requirements, users can configure the relay to operate in either normally open (NO) or normally closed (NC) modes. In NO mode, the relay switch remains open by default and closes when the control signal is applied, while in NC mode, the relay switch remains closed by default and open when the control signal is applied. This flexibility allows users to adapt the module to a wide range of control scenarios. In summary, the 5V Single Channel Relay Module is a versatile and indispensable component in electronics and automation projects. Its ability to provide electrical isolation, handle high currents and voltages, and offer compatibility with popular microcontroller platforms make it an ideal choice for controlling various electrical devices and circuits. Whether used in home automation systems, robotics projects, or industrial applications, the relay module offers reliable performance and ease of integration, empowering users to implement sophisticated control solutions with ease.   Specification and Features :  Trigger mode: Low level One normally closed contact and one normally open contact Pull-down circuit for the avoidance of malfunction Triode drive, increasing relay coil High impedance controller pin Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM) The module is compliant with international safety standards, control, and load areas isolation trenches. Power supply indicator lamp Control indicator lamp Indicator for Relay output status Can Be controlled by various appliances & other Equipment With Large current. Operating Voltage 5V Max Current: 20mA Relay Contact Current Capacity at AC250V: 10A Relay Contact Current Capacity at DC5V: 10A Package included: 1 x 5V 1-channel relay module SKU: IK-129 Categories: 5V Relay, All Products Tags: 1 Channel Relay, 5V relay, relay module Loading...Barcode:
