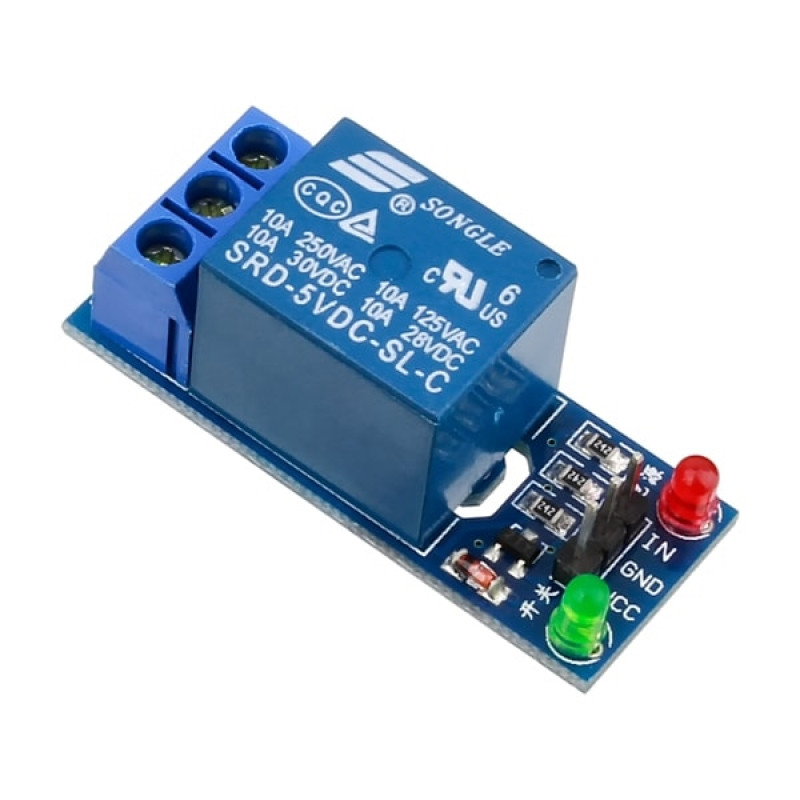

single channel relay

This is 1 Channel 5V Relay Board Module For Arduino PIC AVR DSP ARM. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. Each one needs 15mA – 20mA driver current and Equipped with high current relay: DC 5V / 10A, AC 250V / 10A Standard interface that can be compatible with microcontroller. Specification and Features :-   1 channel relay board Operating Voltage 5V Max Current : 20mA Relay Contact Current Capacity at AC250V: 10A Relay Contact Current Capacity at DC5V: 10A One normally closed contact and one normally open contact Triode drive, increasing relay coil High impedance controller pin Pull-down circuit for avoidance of malfunction Power supply indicator lamp Control indicator lamp Indicator for Relay output status Can Be controlled various appliances & other Equipment With Large current. Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM) The module is compliant with international safety standards, control and load areas isolation trenches;
