Complex Crown Molding Revit Decoration Family 6

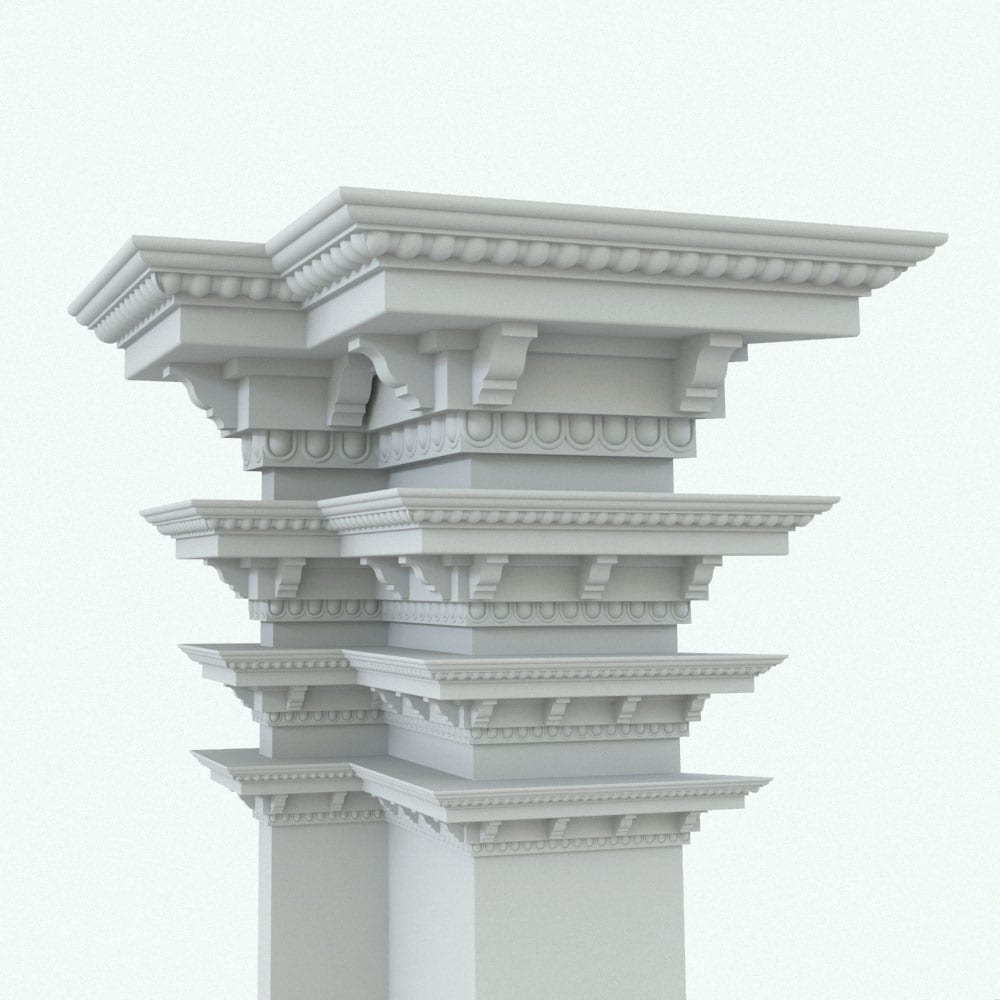

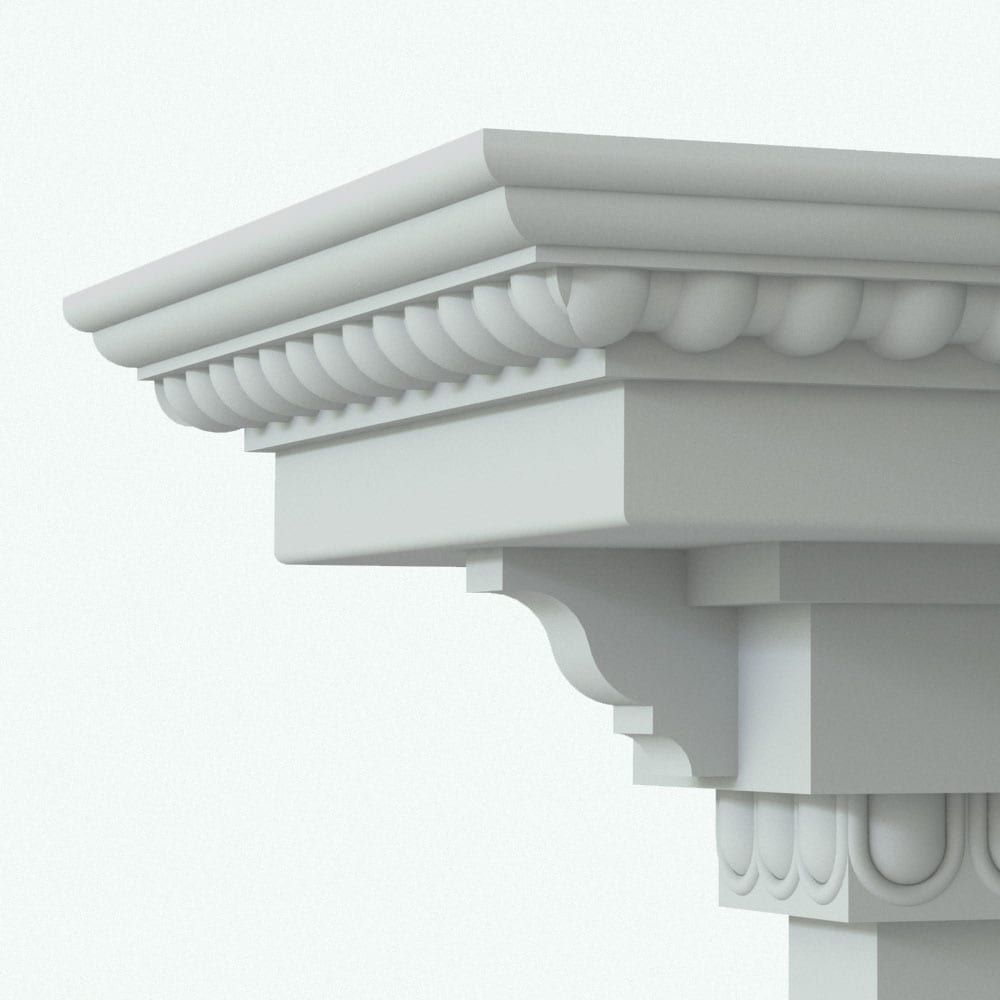

Quick Overview: Fully Parametric Complex Crown Molding Revit Family Line-Based Revit Family Detailed Classical & Traditional Molding Design Adjustable End Angles & Motif Offset Controls Multiple Included Family Sizes Ideal for High-End Interior and Exterior Projects Revit 2016 and Newer Compatible   Product Description: Add a higher level of architectural detail to your interiors with this Complex Crown Molding Revit Decoration Family. Designed for classical, traditional, luxury, and high-end residential interiors and exteriors, this Generic Model Line-Based Revit family delivers intricate molding profiles and detailing that go far beyond what standard Revit wall sweeps can achieve. Unlike simple extrusion-based wall sweeps, this family allows you to create complex decorative crown moldings with more refined geometry and customizable controls, helping elevate the overall quality and realism of your Revit interiors. The line-based workflow also provides flexibility when applying the molding to vertical wall conditions throughout a project. The family includes multiple preset sizes and adjustable end angles, making it easier to adapt the molding to different room layouts and architectural styles. A dedicated motif offset parameter also allows finer alignment adjustments for cleaner transitions and improved continuity between molding segments. This Complex Crown Molding Revit Family is ideal for architectural visualization, luxury residential interiors, hospitality spaces, classical interiors, restoration projects, and detailed BIM presentations where decorative trim quality plays an important role in the overall design. Product Features & Parametric Controls Included Files: This product includes 1 zip file containing: Revit family file (.rfa)   Included Elements Inside the Revit Family: Complex crown molding geometry Decorative molding motifs Adjustable support-like middle motif   Key Parametric Controls: Adjustable Motif horizontal offset Adjustable end angles (inward or outward) Adjustable overall size Revit Family Technical Information Parametric: Yes Hybrid*: No Compatible with: Revit 2016 and higher. Family type: Generic Model Line Based Materials/textures: No Approximate file size: 1.3 MB File format: .rfa This Complex Crown Molding Revit Decoration Family comes with the following customizable parameters and options: This molding family comes with a horizontal offset parameter for the middle motif (the support-like motif). This offset (called Motif 2 Offset) can slide the motif to better align it with adjacent moulding motifs of the same moulding or to prevent it from getting cut weirdly. End angles of the moulding: Maximum inward angle: 60 degrees Maximum outward angle: -60 degrees Minimum height: 10″ Includes the following sizes (family types): 10″ 12″ 18″ 24″ 30″ 36″ 48″ Important Notes SLOW TO REGENERATE since it needs to calculate all the details in real time. Once created it won’t slow down the computer. Very small lengths (depends on the size/height of the moulding) with BOTH ends set to inwards cuts won’t have enough room to create the moulding thus it can cause an error. Also, some very odd lengths can cause the moulding to not be created. All files are delivered in compressed .ZIP format. You will need a third-party extraction software such as WinZip, 7-Zip, or PeaZip before using the files. Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
